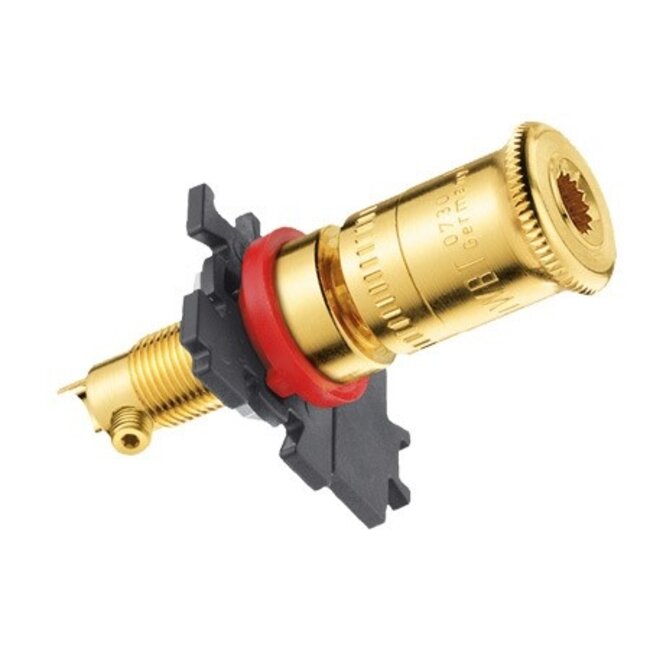

0730.01 – 4 pcs

WBT 0730.01

Product for the highest demands in terms of signal transmission, mechanical stability and design

Excellent mechanical properties, solid construction and the two-part clamping nut with rotating pressure piece ensure a high contact force and therefore a consistently low contact resistance – the prerequisite for absolutely minimal effects on sound quality.

The elegant design of the terminal clamp is further enhanced by the multi-layer gold-plated surface that reliably prevents corrosion.

Outer connection
>> 4mm banana plug
A 4 mm banana plug can be connected in the front part of the clamping nut.

> Spades and crimped cable ends (up to 6 mm² / 9 AWG)
The patented WBT tension nut system allows you to make high pressure spade and crimp cable end connections. The cross-milled surface on the underside of the pressure piece ensures a permanently safe connection with an extremely low contact resistance.

It also prevents splitting of cable strands when exposed cable ends are used.

Inner connection
Indoors, cables with a core cross-section of up to 10 mm² (7 AWG) can be used.
WBT recommends the crimp connection method. You can use the supplied Torx screws and the Torx T.6 wrench to perfectly tighten crimped cable ends.
However, the connections can also be soldered. If you decide to solder, WBT recommends the surface-friendly silver solder WBT-0800

Edit
Mounting insulators are included and provide not only insulated, but also twist-proof mounting and polarity identification. Jam nuts, cam double step washers and puzzle plates are also included.

The puzzle plates can be clicked together. This ensures a precise clamping distance of 19 or 30 mm, but above all absolute torsional protection.

The nuts on devices with high intrinsic mechanical vibration levels such as loudspeakers require additional tightening – for example with the WBT Serrated Lock Washer WBT-9150.

If a fixed distance of 19 mm is desired, the spacer WBT-9404 can be used and the WBT-0730.01 mounted as a double clamp.

Thanks to the locking slots in the spacer, the inlet opening for the connection cable can be rotated in 45 ° steps.

• Extremely high contact force for spades thanks to fine thread and cross-milled surface
• Pat. two-piece tension nut for maximum joint strength
• Solder or crimp connection with Torx screw
• 24 carat multi-layer gold plating (nickel free)
• max. Height constant current 70 A.
• Twist proof mounting
• Puzzle plate system
