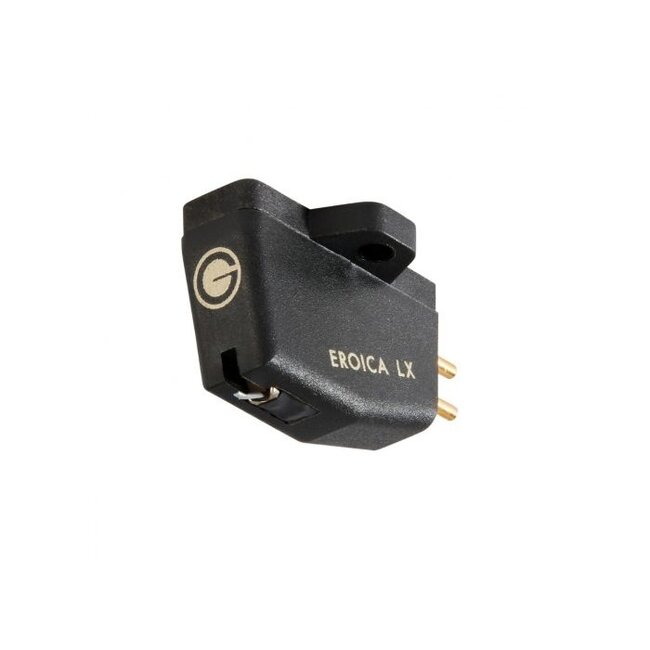

Eroica LX

Goldring's Eroica LX offers an exceptionally high standard of performance and reliability!
The Eroica LX is a true audiophile moving coil cartridge featuring an advanced pole-shoe design using a powerful rare earth Neodymium magnet. This unique construction allows a shortened magnetic path, which helps reduce the amount of iron in the cartridge, keeping the weight down to just 5.5gms.

Rigidity is also of prime importance and the Pocan body of the cartridge enables it to be clamped solidly to the headshell, keeping energy losses to an absolute minimum. The Eroica LX uses a Gyger II line contact stylus and is a low output MC cartridge.

Specifications:
Frequency Response: 20Hz-22kHz±3dB
Channel Balance: 1dB max. @ 1kHz
Channel Separation: 25dB @ 1kHz
Sensitivity: 0.5mV±1dB
Static Compliance: 18mm/N
Equivalent tip mass: 0.35 mg
Vertical Tracking Angle: 20°
Stylus Radius: Gyger II
Stylus Type: Non-Replaceable
Load Resistance: 100 Ohm
Load Capacitance: 100-1000pF
Internal Inductance: 12 µH
Internal Resistance: 8 Ohm
Cartridge Weight: 5.5g
Fixing Centre: 0.5??? (12.7mm)
Tracking: 1.5-2.0g (1.7g Recommended)
