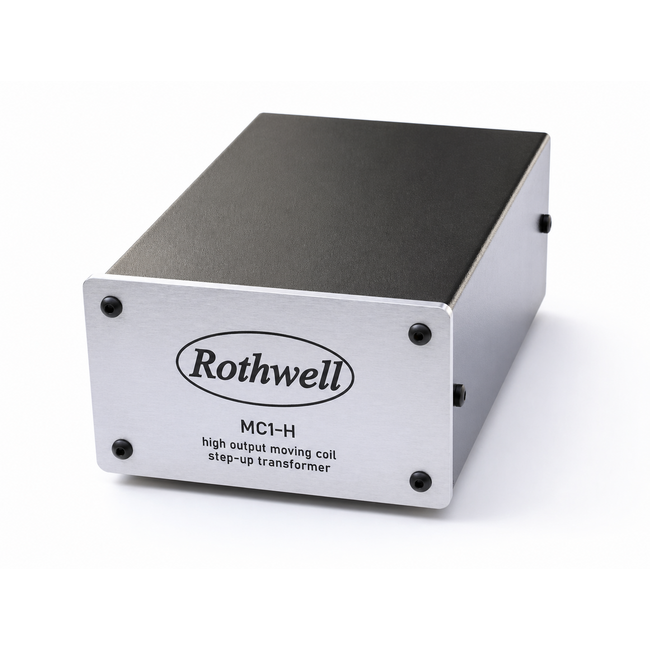

Rothwell MC1-H

Rothwell MC1-H: A Must-Have for High Output Moving Coil Cartridges

Introduction: The Rothwell MC1-H is an innovative step-up transformer specifically designed for high output moving coil cartridges. This transformer is ideal for cartridges with a lower output voltage than standard moving magnet cartridges, which are around 5mV. The MC1-H is the perfect solution for audiophiles looking to get the best out of their high output moving coil cartridges.

Cartridge Compatibility: The MC1-H is compatible with a range of high output moving coil cartridges, including:

• Denon DL-110
• Denon DL-160
• Benz Micro MC Silver
• Hana EH
• Hana SH
• Roksan Shiraz

Cartridges with an output voltage between 0.8mV and 1.8mV will benefit optimally from the MC1-H, while cartridges with an output voltage between 1.8mV and 2.5mV can also experience improvements.

Technical Specifications:

• Turns Ratio: 1:3.2
• Voltage Gain: 10dB (x3.2)
• Input Impedance: 400 ohms
• Optimum Load Impedance: 47k + 150pF
• Bandwidth: 5Hz - 36kHz (+0/-3dB)
• Cartridge Compatibility (Output): 0.8mV - 1.8mV (ideal), 1.8mV - 2.5mV (acceptable)
• Cartridge Compatibility (Impedance): Internal impedance <200 ohms
• Dimensions: 60 x 155 x 92 mm
• Weight: 580g

Benefits of the MC1-H: The MC1-H delivers an increased signal level and improved signal-to-noise ratio, crucial for achieving superior sound quality with high output moving coil cartridges. With optimal load impedance and a wide bandwidth, this transformer ensures accurate and detailed music reproduction.

Unique Features: The special feature of the MC1-H is the carefully chosen turns ratio and voltage gain, specifically tailored to high output moving coil cartridges. This ensures precise and efficient amplification, essential for delivering clear and dynamic sound.

Conclusion: The Rothwell MC1-H is an excellent investment for vinyl and high-fidelity audio enthusiasts. This step-up transformer provides a significant improvement in sound quality for a wide range of high output moving coil cartridges. Its technical specifications and compatibility make it a top choice for audiophiles looking to get the best out of their equipment. With the MC1-H, you can enjoy a richer and more detailed sound experience, bringing your music collection to life.
