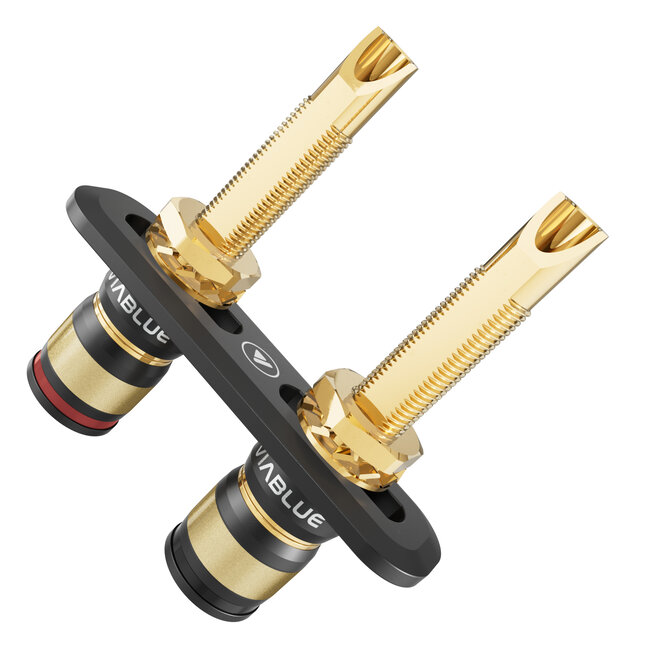

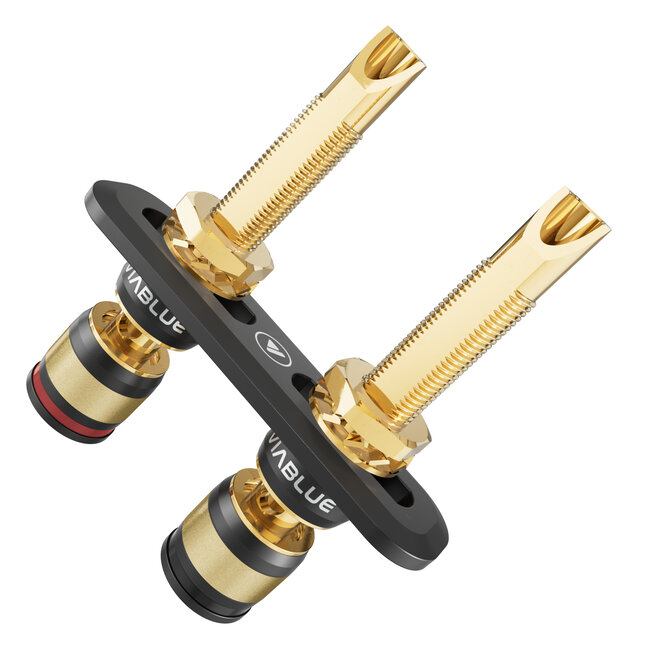

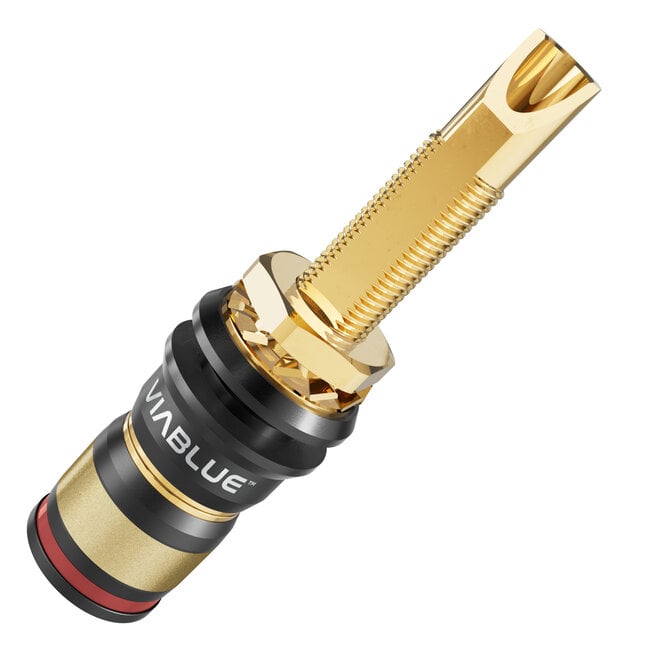

T8 Binding Posts

ViaBlue T8 Binding Posts: High-End Connections for Perfect Sound Quality

The ViaBlue T8 Binding Posts are specifically designed to create a reliable and efficient connection between high-quality speaker cables and the internal components of speakers. Thanks to advanced technology and precise manufacturing, these binding posts ensure optimal signal transmission with minimal losses.

Excellent Technology for Optimal Performance

The development of binding posts focuses on minimizing resistance. The ViaBlue T8 Binding Posts feature a continuous contact piece with consistent thickness from the spade or banana plug connection to the soldering tub inside the speaker. This reduces contact resistance and guarantees stable signal transmission.

Key technical features:

• Extra-long M8 fine-thread bolt: Suitable for thicker mounting terminals and device enclosures.
• Large soldering tub: Designed for high-end cables with large cross-sections.
• Non-slip honeycomb surface: Prevents spade connectors or plugs from slipping or rotating.
• Toothed and flat washer combination: Ensures stable and long-lasting mounting.
• Fixed screwable shell: Remains secure even when fully loosened.

Unique Rotation Protection

A common issue with traditional binding posts is rotation within round mounting holes in speaker walls. The patented ViaBlue Rotation Protector solves this problem. Thanks to a flattened soldering tub and innovative protective layer, the ViaBlue T8 Binding Posts stay firmly in place.

High-End Materials and Design

• 24-Carat Gold Plating: Prevents corrosion and enhances sound quality.
• Aluminum Housing: Ensures durability and a sleek appearance.
• Isolation Discs: Two ViaBlue Isolation Discs provide electrical insulation, pressure sealing, and vibration reduction.

Multiple Connection Options

The ViaBlue T8 Binding Posts are highly versatile and offer various connection possibilities:

1. Direct connection of cables like the ViaBlue LS-2 double-insulated speaker cable.
2. Spade connectors for a stable and permanent connection.
3. Banana plugs for quick and flexible connections.
4. Simultaneous use of spade connectors and banana plugs.

Assembly Instructions

Assembly is straightforward and user-friendly:

• Solder stripped cable ends to the contact piece, which can be fully separated from the connector housing.
• Secure the binding post with the Rotation Protector and firmly mount it to the speaker terminal.

Technical Details

• Diameter: 15.6 mm
• Diameter of Isolation Disc: 18 mm
• Total Length: 69 mm
• Length of Visible Outer Part: 31.8 mm
• Length of Visible Inner Part: 32 mm
• Terminal Thickness: 5 mm
• Mounting Hole Diameter: 11.8 - 12.2 mm
• Inner Diameter of Soldering Tub: 4.9 mm
• ViaBlue Rotation Protector: Included

Why Choose ViaBlue T8 Binding Posts?

With advanced technology, high-quality materials, and thoughtful features, the ViaBlue T8 Binding Posts are the ideal choice for anyone striving for the best sound quality. They combine precision, durability, and luxurious design to elevate your audio setup to the next level.
